Portable Earth Water Well Drilling Rig Machine

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Min. Order:	1 Piece/Pieces
Delivery Time:	14-21 Days

Contact Now

Basic Info

Model No.: DL-360

Certification: SGS, CE, ISO 9001:2008, Other

Condition: New

Drill Hole Diameter: >300mm

Drill Hole Depth: <30m

Drilling Way: Rotary

Type: Four-Wheel trailer

Motor: DC Motor

Color: Customized

Enginee Brand: Weichai6105

Power Head Speed: 10-40rpm

Maximum Torque Of Power Head: 24000-30000n.m

Weight: 14T

Depth: 20m

Drill Rod Type: Suqare Rod Drilling Rig Machine

Drilling Diameter: 500-1500mm

Chassis Length: 4700mm

Tire: 825-16

Additional Info

Packaging: container

Productivity: 10sets/1 month

Brand: Yahe heavy industry

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 units per month

Certificate: ISO CQC CE SGS

HS Code: 8430509000

Port: Qingdao,Shanghai,Tianjin

Product Description

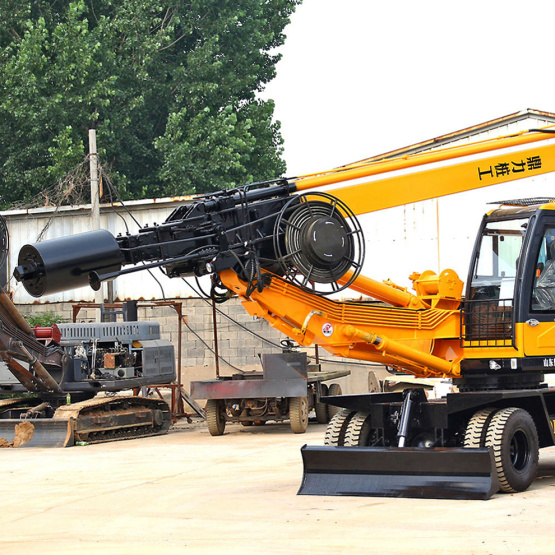

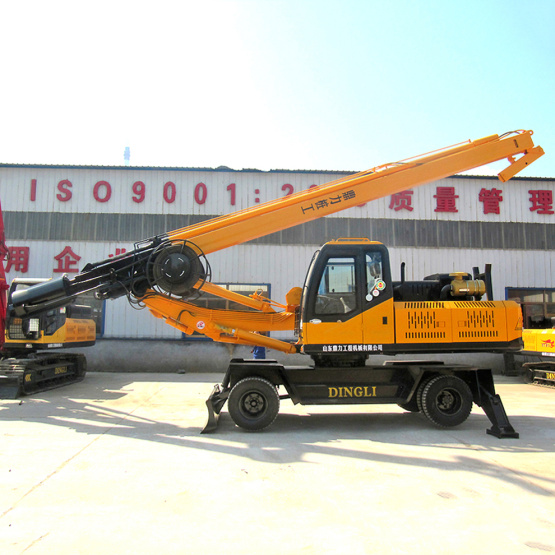

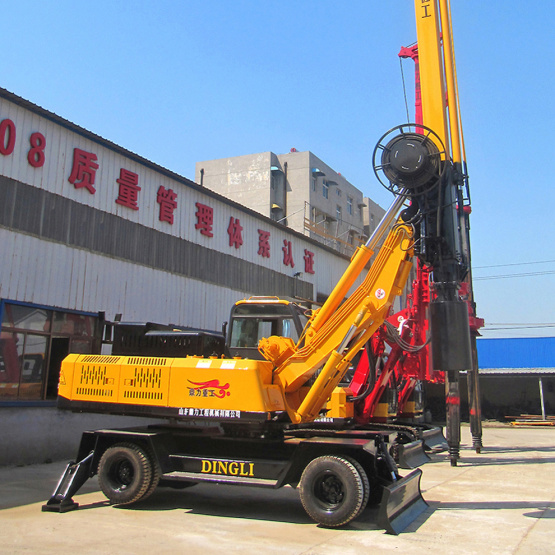

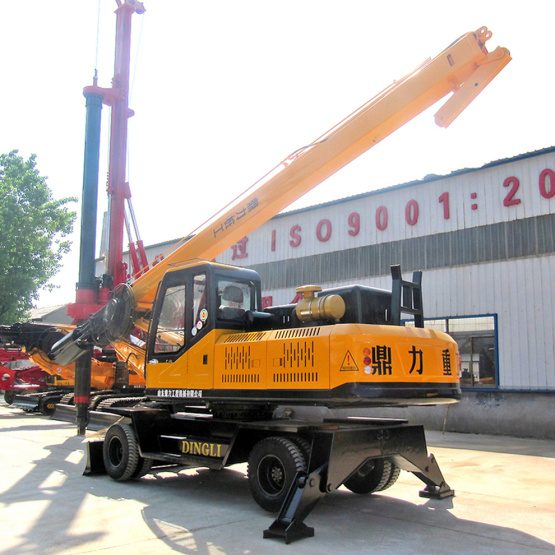

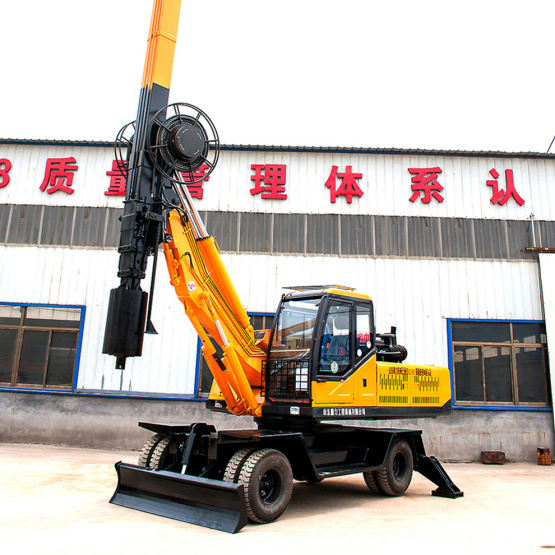

Portable Earth Water Well Drilling Rig Machine DL-360 is a multifunctional drilling rig for civil engineering of an eight-wheel, two-axle, four-wheel drive chassis produced by our company, with a maximum drilling depth of 20 meters and a drilling diameter of 500-1500MM. It is mainly used for the pile foundation construction of infrastructure projects and the construction of digging wells under certain conditions. The construction environment requires the groundwater layer to be no more than 20 meters from the ground. During the drilling process, it is possible to choose whether to release a protective tube according to the soil structure to prevent the cave from collapsing. Therefore, the drilling efficiency and the construction safety are improved, and the hoisting of the related drilling tool can be completed by an auxiliary hoist. This model has CE / SGS / ISO and other product quality certifications. For more information, you are welcome to consult and visit.

Portable Water Well Drilling Machine

Product Type	DL-360
Chassis length.(mm)	4700
tyre model	825-16
Machine weight.(t)	10-13
Maximum drilling depth.(m)	10-30（Optional)
Drilling diameter.(mm)	500-1500
Engine brand	Weichai
Engine Model	4108/6105（Optional）
Engine rated power.(KW/rpm)	85KW-126KW
Drive type	Four-wheel drive
Travelling mode	Mechanical
Maximum Torque of Power Head.(N.m)	24000-30000
Power head speed.(rpm)	10-30
Power head whether to provide custom	Yes
Maximum working pressure of hydraulic system main pump.(MPa)	25
Maximum working pressure of hydraulic system auxiliary pump.(MPa)	12
Maximum bow rate of the main pump hydraulic systen.(L/min)	50*2
Maximum bow rate of the auxiliary pump hydraulic systen.(L/min)	16
Maximum pressure of the pressurization system.(KN)	80
Maximum lifting force of the pressurization system.(KN)	80
Maximum travel pressure system.(m)	20
Maximum lifting force of the main winch.(KN)	80
Maximum pull-up speed of the main winch. (m/min)	80
Maximum lifting force of the auxiliary winch.(KN)	15
Maximum pull-up speed of the auxiliary winch.(m/min)	50
Maximum lifting power of the auxiliary winch.(t)	1.5
Left and right inclination angle of drilling mast.(°)	±5
Forward inclination angle of drilling mast.(°)	4
Maximum driving speed.(KM/h)	35
Maximum climbing angle.(°)	30
Overall width of working state.(mm)	4000
Overall length of transport status.(mm)	10200
Overall width of transport status.(mm)	2200
Overall height of transport status.(mm)	3000
Drill rod type	Square rod. pressurized type/self-pressure
Drill rod whether to provide custom	Yes
Drilling tools	500-1500mm drilling bit、Drlling Barrel、Coring drill、Reaming drilling bit
Drilling tools
Drilling tools whether to provide custom	Yes
