Foundation Pile Reverse Rotary Drilling Rig Machine

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Min. Order:	1 Piece/Pieces
Delivery Time:	14-21 Days

Contact Now

Basic Info

Model No.: DR-120

Type: Drill

Pressure Pile Driver Type: Hydraulic Pile Driver

Power Source: Diesel

Certification: SGS, CE, ISO 9001:2008

Condition: New

Additional Info

Brand: Dingli

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 units per month

Certificate: ISO CQC CE SGS

Port: Qingdao,Shanghai,Tianjin

Product Description

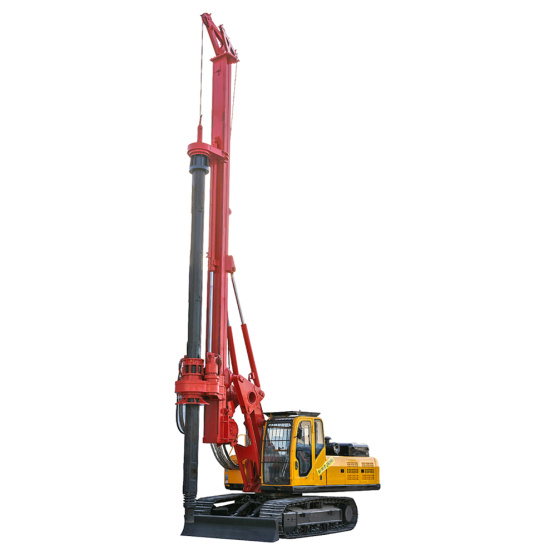

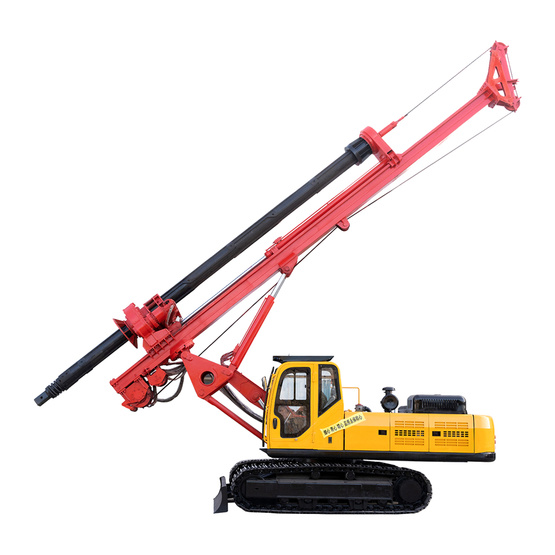

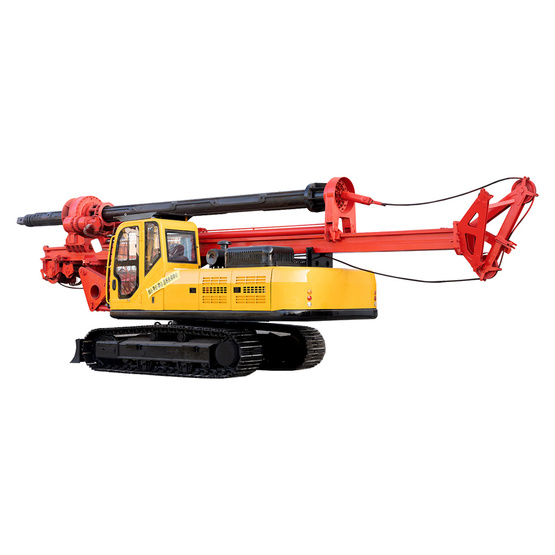

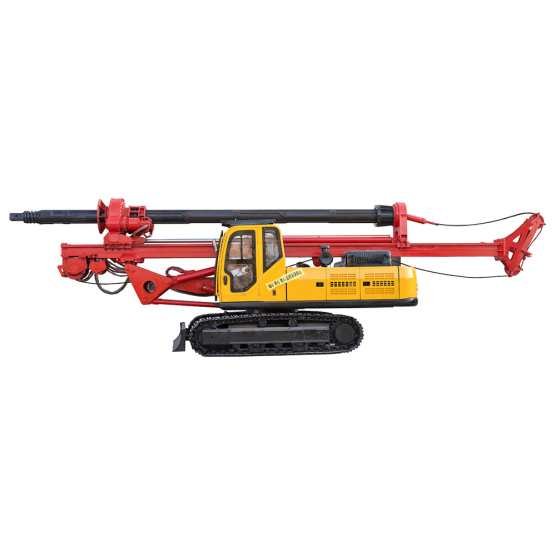

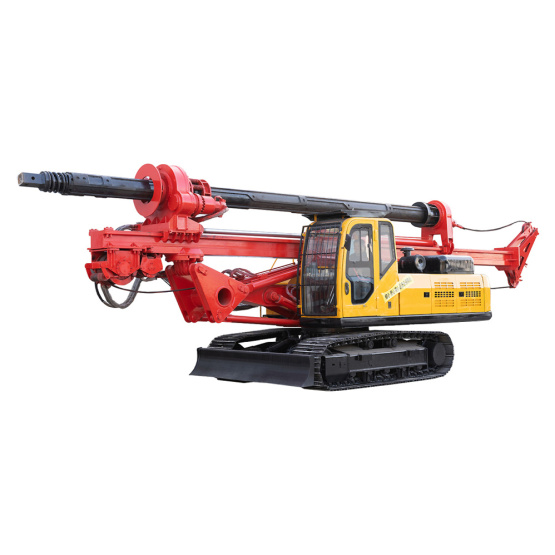

Foundation Pile Reverse Rotary Drilling Rig Machine is a medium-sized multi-purpose rotary pile driver with Cummins high-power diesel water-cooled turbocharged engine, Kawasaki hydraulic system, and variable-speed telescopic crawler chassis. The cockpit is equipped with LCD operating condition display instruments. The display adopts an easy-to-operate human-machine interface in English for easy observation. It can automatically detect drilling records in real time. Temperature, maintenance time, working time, etc. The rig drill pipe has the function of automatic vertical adjustment, and is equipped with a secondary hoist to assist lifting construction. In order to cope with different working conditions, a variety of drilling tools can be selected, such as long and short spiral drill bits, ordinary drill bits, open bucket bits, bucket rock drill bits, etc. The company has been engaged in R & D and manufacturing of construction machinery for more than 25 years, and has accumulated a large number of advantageous resources and technologies. Its products have obtained CE / ISO / SGS and other quality certifications. For more information welcome your inquiry and visit.

Foundation Pile Drilling Rig

Product Type	DR-120
Chassis length.(mm)	4200
Track width.(mm)	600
Machine weight.(t)	30
Maximum drilling depth.(m)	30
drilling diameter.(mm)	500-1800
Engine brand	Yuchai/Weichai/Cummins（Optional）
Engine rated power.(KW/rpm)	151KW-176KW
Maximum torque of power head.(KN.m)	120
Power head speed.(rpm)	10-50
Maximum working pressure of hydraulic system main pump.(MPa)	30
Maximum working pressure of hydraulic system auxiliary pump.(MPa)	12
Maximum bow rate of the main pump hydraulic system.(L/min)	112*2（Optional)
Maximum bow rate of the auxiliary pump hydraulic system.(L/min)	16
Maximum pressure of the pressurization system.(KN)	100
Maximum lifting force of the pressurization system.(KN)	80
Maximum travel pressure system.(mm)	3000
Maximum lifting force of the main winch.(KN)	150
Maximum pull-up speed of the main winch. (m/min)	50
Maximum lifting force of the auxiliary winch.(KN)	15
Maximum pull-up speed of the auxiliary winch.(m/min)	50
Left and right inclination angle of drilling mast(°)	±5
Forward and backward inclination angle of the drilling mast. (°)	5/90
Maximum driving speed(KM/h)	1.5
Maximum climbing angle.(°)	25
Maximum Driving torque.(KN.m)	45000
Overall width of working state.(mm)	4200
Overall length of transport status.(mm)	13000
Overall width of transport status.(mm)	2800
Overall height of transport status.(mm)	3500
Drill rod type	Machine Lock
Drill rod whether to provide custom	Yes
drill tools	500-2000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit
